Stainless Steel 430 & 430Ti Pipes & Tubes Supplier & Stockist in India
High-temperature oxidation endurance, low thermal expansion, and resistance to chloride stress corrosion cracking make ferritic alloys essential for industrial fluid lines. As a premier Stainless Steel 430 Pipes & Tubes Supplier in India, Steel Emporium stocks non-hardening 17% chromium piping engineered for nitric acid containment, heat exchangers, and furnace ducting systems.

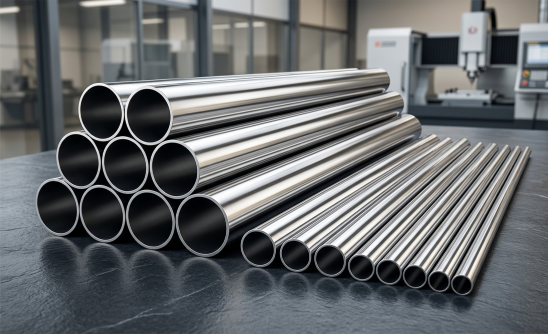

To support urgent project schedules across automotive exhaust and petrochemical sectors, we serve as a leading Stainless Steel 430 Pipes & Tubes Stockist in India. Our ready inventory of seamless and welded 430 ferritic stainless steel provides exceptional resistance to thermal scaling up to 815°C, fully compliant with ASTM A268 standards and backed by authentic EN 10204 3.1 certification.
When engineering elevated-temperature weldments, boiler flues, and combustion chambers requiring immunity to intergranular corrosion in post-weld zones, turn to our inventory as trusted Stainless Steel 430Ti Pipes & Tubes Suppliers in India. For heavy mechanical wear applications requiring high-carbon hardness or martensitic strength, review our complementary Stainless Steel 420 & 431 Pipes & Tubes catalog.
For titanium-stabilized ferritic line pipe designed for continuous thermal cycling without grain growth brittleness, partner with an established Stainless Steel 430Ti Pipes & Tubes Stockist in India. We offer direct factory pricing, precision cut-to-length services, and express export logistics for all industrial piping orders.
Jump To Section: Material Specs | Grade Selection | Size Chart | FAQs
ASTM A268 SS 430 & 430Ti Technical Specifications
| Technical Parameter | Specification Standard & Scope |
|---|---|
| Manufacturing Standards | ASTM A268 (Seamless and Welded Ferritic Stainless Steel Tubing for General Service), ASME SA268 |
| Dimensional Range | Seamless: 1/2" NB to 12" NB | Welded / ERW: 1/2" NB to 24" NB | Custom OD: 6.0 mm to 610.0 mm |
| Wall Thickness / Schedules | SCH 5S, SCH 10S, SCH 40S, SCH 80S (Custom wall gauge up to 12.7 mm) |
| Form & Delivery Conditions | Round, Square, Rectangular, Fully Annealed, Passivated, Pickled |
| End Finish & Surface Processing | Plain End (PE), Beveled End (BE), Threaded, Bright Annealed (BA), No. 4 Polish, 2B Mill Finish |
Alloy Grade Selection Guide: SS 430 vs SS 430Ti
Choosing between standard SS 430 and titanium-stabilized SS 430Ti depends on your fabrication requirements and operating temperatures. While both are ferritic 17% chromium alloys offering immunity to chloride stress corrosion cracking, their performance diverges significantly once welding and thermal cycling enter the equation.
| Feature / Requirement | SS 430 (UNS S43000) | SS 430Ti (UNS S43036) |
|---|---|---|
| Primary Advantage | High surface finish & cost-effective nitric acid resistance | Titanium stabilization prevents sensitization during welding |
| Welded Joint Ductility | Risk of brittle HAZ without post-weld annealing | Excellent as-welded joint ductility and toughness |
| Intergranular Corrosion | Prone to chromium carbide precipitation in HAZ | Immune (Titanium ties up carbon as TiC) |
| Max Thermal Limit | Up to 815°C (Intermittent service) | Up to 870°C (Continuous cyclic thermal exposure) |
| Best Used For | Unwelded ducting, chemical storage tanks, decorative trim | Automotive exhausts, boiler tubes, burner assemblies |
Grade 430 Stainless Steel Pipes & Tubes – Cost-Effective Ferritic Solution in India
Featuring a minimum 16% chromium content with virtually zero nickel, Stainless Steel 430 Pipes offer a cost-effective solution for resisting chemical oxidation in mild industrial atmospheres and organic acid media. If your project involves non-welded assemblies or post-annealed components, verifying the precise 430 stainless steel chemical composition ensures proper chromium distribution. Sourcing a mill-certified 430 stainless steel pipe in India guarantees high resistance to stress corrosion cracking compared to standard austenitic alloys.

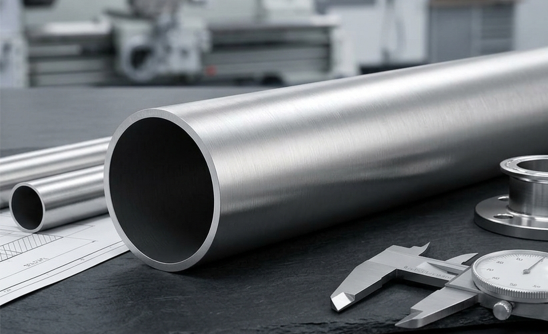

Grade 430Ti Stainless Steel Pipes & Tubes – High-Temp Titanium-Stabilized Line Pipe
If your application involves heavy field welding or continuous high-temperature cycling, titanium-stabilized SS 430Ti tubes are the essential choice. By integrating titanium at five times the carbon content (Ti ≥ 5 × C), these tubes suppress chromium carbide precipitation along grain boundaries during welding. When sourcing a stainless steel 430Ti pipe, this metallurgical stabilization maintains full joint ductility and intergranular corrosion resistance in heat-affected zones, eliminating the need for costly post-weld heat treatment.
Which Grade Fits Your Order?
Select Stainless Steel 430 if: You require a cost-effective, nickel-free solution for unwelded fluid lines, chemical storage tanks, or furnace ducting operating under mild atmospheric conditions. Select Stainless Steel 430Ti if: You are fabricating welded heat exchangers, exhaust manifolds, or boiler flues exposed to continuous heat cycling where post-weld heat treatment is impractical.
Chemical, Mechanical & Equivalent Specifications
| Element / Parameter | SS 430 (UNS S43000) | SS 430Ti (UNS S43036) |
|---|---|---|
| Carbon (C) | 0.12 max | 0.05 max |
| Chromium (Cr) | 16.00 – 18.00 | 16.00 – 18.00 |
| Titanium (Ti) | — | 5 × (C + N) min to 0.75 max |
| Manganese (Mn) | 1.00 max | 1.00 max |
| Silicon (Si) | 1.00 max | 1.00 max |
| Nickel (Ni) | 0.75 max | 0.75 max |
| Phosphorus (P) | 0.040 max | 0.040 max |
| Sulfur (S) | 0.030 max | 0.030 max |
| Mechanical Property | SS 430 Pipes & Tubes | SS 430Ti Pipes & Tubes |
|---|---|---|
| Tensile Strength (MPa min) | 450 | 415 |
| Yield Strength (0.2% Proof, MPa min) | 205 | 205 |
| Elongation (% in 50mm min) | 22 | 20 |
| Hardness (Rockwell B max / Brinell max) | 83 HRB / 183 HBW | 85 HRB / 190 HBW |
| Standard / Agency | SS 430 | SS 430Ti |
|---|---|---|
| UNS Designation | UNS S43000 | UNS S43036 |
| Werkstoff Nr. | 1.4016 | 1.4510 / 1.4520 |
| EN Standard | X6Cr17 | X3CrTi17 |
| AFNOR | Z8 C 17 | Z4 CT 17 |
SS 430 & 430Ti Size & Schedule Chart
| Nominal Size (NB) | Outer Diameter (mm) | SCH 5S Wall | SCH 10S Wall | SCH 40S Wall |
|---|---|---|---|---|
| 1/2" NB | 21.34 mm | 1.65 mm | 2.11 mm | 2.77 mm |
| 1" NB | 33.40 mm | 1.65 mm | 2.77 mm | 3.38 mm |
| 1.5" NB | 48.26 mm | 1.65 mm | 2.77 mm | 3.68 mm |
| 2" NB | 60.32 mm | 1.65 mm | 2.77 mm | 3.91 mm |
| 3" NB | 88.90 mm | 2.05 mm | 3.05 mm | 5.49 mm |
| 4" NB | 114.30 mm | 2.11 mm | 3.05 mm | 6.02 mm |
Key Industrial Applications
Nitric Acid Processing & Chemical Storage (SS 430)
Employed in nitric acid production lines, storage tanks, and chemical absorption towers due to high resistance to oxidizing acids.
Automotive Exhaust & Manifold Systems (SS 430Ti)
Specified for exhaust manifolds, catalytic converter casings, and muffler tubing that experience continuous thermal cycling and road salt splash.
Industrial Burners & Combustion Tubes (SS 430Ti)
Utilized in industrial oven liners, boiler flues, and flare stacks where titanium prevents grain growth embrittlement at elevated temperatures.
Food Processing & Sugar Refining (SS 430)
Applied in conveyor rollers, sugar juice evaporators, and architectural ducting requiring moderate corrosion resistance and easy surface cleaning.
Quality Control, MTC Documentation & Inspection Standards
Every pipe dispatch undergoes rigorous quality control protocols to ensure dimensional compliance and chemical purity before shipping.
| Certification / Standard | Compliance & Testing Scope |
|---|---|
| ISO 9001:2015 & Pressure Compliance | Certified QMS with PED 2014/68/EU and AD 2000 Merkblatt approvals. |
| EN 10204 3.1 & 3.2 MTC | Official test reports covering heat numbers, chemistry, and factory origin tracking. |
| PMI & Lab Verification | 100% XRF spectro testing and NABL-accredited laboratory inspections. |
| Mechanical & Weld NDT | Hydrostatic, ultrasonic, and flaring tests guarantee 100% seam integrity. |
| TPI & Corporate Address | Inspection-ready for SGS, TUV, Bureau Veritas, or Lloyds. |
| Verified Corporate Address | Registered Head Office & Operations: 102, Durga Devi Street, Mumbai-400004, Maharashtra, India |
Frequently Asked Questions
Request a Technical Sourcing Quote
Source mill-certified ferritic piping tailored to your project requirements. Contact our technical sales department today for stock availability, custom cutting requests, or direct pricing.
